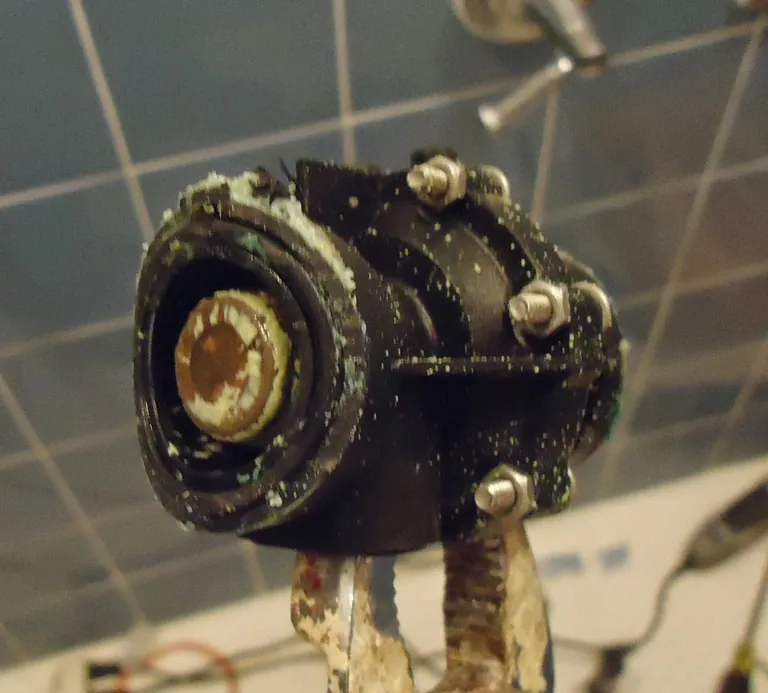

Identify the shower cartridge before you order a replacement.
Shower cartridges can look deceptively similar. Check the manufacturer, markings, and valve series. If the cartridge is already removed, compare its shape and dimensions too; the visible trim alone may not identify the part.
On this page (9)
What can identify the cartridge?
Start with the manufacturer, valve series, and any cartridge markings. Shape and appearance can narrow the options, but a similar-looking part is not enough to confirm the replacement.
- Strongest
Cartridge markings / part number
- Manufacturer name
- Stamped or printed number
- Official replacement documentation tied to the installed part
Most useful when the marking can be tied to the cartridge that came from your installed valve.
- Strong
Manufacturer and valve series
- Confirmed brand
- Valve series
- Official parts diagram or trim/valve documentation
Useful for narrowing the cartridge family. Visible trim alone usually does not identify the cartridge.
- Narrowing
Cartridge shape and measurements
- Overall shape and dimensions
- Stem form, port pattern, tabs, indexing features
- Profile and end views
Useful for ruling out obvious mismatches, but more than one cartridge can still have similar dimensions and shape.
- Insufficient
Visual resemblance only
- “It looks like this cartridge”
- Generic seller-photo similarity
- Color or listing title alone
Not enough by itself to confirm the replacement cartridge.
Start with the installed valve’s manufacturer, series, and markings. Compare the cartridge’s shape and photos with manufacturer documentation rather than relying on a similar-looking seller photo.
A photo can narrow the options, but the final match still needs to agree with the manufacturer and service-part information.
Identify the cartridge before following replacement steps.
Many shower cartridges are proprietary, and similar-looking parts can belong to different manufacturers, valve families, or revisions. First identify the installed cartridge, then confirm the replacement part, and only then follow the instructions for that valve and cartridge.
Visible trim can help identify the brand or series, but it usually does not tell you which cartridge is inside. A removed cartridge, legible markings, and manufacturer documentation are more useful.
Photograph the installed shower, cartridge markings, and the shape of the part.
Take photos that show different useful details instead of repeating the same angle.
- Installed context
Show the trim and controls, the valve opening if it is already exposed, and which way the cartridge is fitted.
- Markings
Capture stamped numbers, molded characters, manufacturer names or logos, and labels. Legible markings can be the strongest direct clues.
- Shape and measurements
Show the full cartridge, side profile, stem, opposite end, distinctive tabs or ports, and a ruler or known scale if dimensions matter.
A photo can narrow the options, but it does not confirm the service part by itself.
A number is useful only if you know what it identifies.
A manufacturer name, valve family, cartridge marking, service-part number, and seller replacement claim are not the same thing. A number molded into the cartridge may identify a mold, series, subcomponent, or the service part, so check what that number refers to before ordering.
Prefer manufacturer parts information or a reliable parts cross-reference over a seller title. If a seller’s compatibility claim conflicts with manufacturer information, do not rely on the listing.
Shape and measurements help rule parts in or out, but similar cartridges can still share the same dimensions.
Useful clues include overall length, body diameter or width where relevant, stem profile, ports, tabs, end shape, and orientation features. These details can eliminate obvious mismatches and distinguish families that look similar at first glance.
One matching dimension is not enough to confirm fit. Cartridges can share the same length or stem style while differing in retention, port layout, indexing, or internal function.
If the marking and the shape disagree, stop and reconcile the clues.
If the markings, shape, or valve information disagree, do not order the closest-looking cartridge. Re-check the part first.
- Marking vs. shape
A marking appears to indicate one family, but the removed part’s shape and measurements point to another.
- Trim vs. removed part
The visible trim suggests one brand or series, while the cartridge details point elsewhere.
- Seller claim vs. manufacturer information
A seller page says the part is compatible, but manufacturer information does not confirm it.
- Strong visual match vs. documented mismatch
The cartridge looks right, but the service-part information does not match the installed valve.
Do not order the cartridge until the conflicting clues are resolved with reliable parts information.
Once the cartridge is identified, follow the replacement instructions for that valve and part.
Once you identify the installed cartridge, confirm the manufacturer’s replacement part rather than relying on a similar name or appearance.
-
01
Confirm which cartridge is installed.
-
02
Confirm the manufacturer replacement part or a reliable parts cross-reference.
-
03
Compare the replacement part with the installed cartridge and valve information.
-
04
Confirm the replacement before comparing sellers or prices.
Replacement steps depend on the valve and the exact cartridge.
Before replacement, make sure you can shut off the water and note the cartridge orientation. Then follow the manufacturer’s instructions for the valve and cartridge you identified.
- Avoid forcing a cartridge when the retention method is unclear.
- Do not assume every valve uses the same clip, nut, retainer, extraction method, lubricant, or seal treatment.
- Inspect the valve body for visible damage before assuming another cartridge will fix the problem.
- After reassembly, confirm that the valve operates normally and the original symptom is gone.
Sometimes the cartridge is not the part you need to replace.
Valve-body damage, a trim or control change, a function the existing valve does not support, or difficult plumbing access can make this more than a cartridge-replacement job.
Continue into valve-body, trim, and function compatibility rather than forcing the problem into a cartridge decision. Check shower-valve compatibility →
Some cartridge problems need broader plumbing help.
The cartridge cannot be removed without uncertain force or disassembly.
A practical shutoff is unavailable.
The valve body appears damaged.
The work involves plumbing behind the wall.
Replacing the cartridge again does not fix the problem.
Common questions
Can I identify a shower cartridge from the trim alone?
Usually not. Trim can help identify the manufacturer or series, but you may still need the cartridge itself, its markings and shape, or manufacturer parts information to confirm the replacement.
Is a photo enough to identify the exact cartridge?
Good photos can narrow the options substantially, but the final match should still agree with manufacturer and service-part information.
Where should I look for cartridge markings?
Look for stamped, printed, or molded characters on the removed component, along with manufacturer names or logos. Record the marking exactly and photograph the surrounding part so the marking can be interpreted in context.
Why do two cartridges that look similar have different part numbers?
External shape is only one part of compatibility. Internal function, port layout, indexing, retention, series revisions, and manufacturer-specific design can differ even when two parts look similar.
Can I replace a shower cartridge without knowing the exact model?
Wait to order until the installed cartridge and its replacement are confirmed. Guessing from resemblance can lead to an incompatible part.
When is the problem the shower valve rather than the cartridge?
Valve-body damage, trim/function changes, hidden-valve compatibility, unavailable functions on the current rough-in, or plumbing access problems can shift the job to the valve system rather than the cartridge alone.
